Well, the storm I talked about last week has been averted; for the moment, at least. Since UWP applications can run on a wide array of devices, it has many limitations on what it can and cannot do for security reasons. One of these limitations is that it cannot access any files outside its own install folder. This is quite a big contrast to traditional desktop applications that can access files just about anywhere on the device it is on. This creates a huge discrepancy between the capabilities of GFile on Linux, MacOS, and Win32 and of GFile on UWP. We could heavily limit the capabilities of GFile so that it's consistent across all platforms; we don't want to limit users that are developing games and applications for desktop use only. So we've just decided to leave it as is for now, but we have plans to revisit this in the future to allow the user to put GFile in a sort of mode that will make it more consistent across all platforms.
But the original problem that brought this to our attention still remains. A few of our unit tests, such as GFile, GAudio, and GBlitter, use external resource files to conduct their unit tests, which of course, exist outside of the install folder since the install folder isn't created until the application is built and runs the first time. So we have to find some way to get the files from the external resource folder to our local resource folder inside of the install folder. Luckily, Chase Richards has already done this for the files in GFile and GAudio, and I just needed to copy what he did for those and then do it for the GBlitter files.
First, we grab all the files we want to copy and store them into a Global Resource. For GBlitter, we are copying both the png and tga files.
We then want to copy those Global Resources into stand CMake variables.
Next, we want to group these files altogether into one variable (we'll come back to this later).
Next, we want to have the application copy these files into the deployment location (install folder).
Finally, we'll take the grouped variable from earlier and add those to the executable and source group.

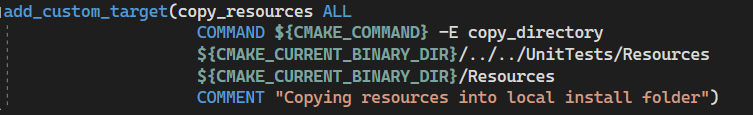

While this does get the job done, it can be very annoying to do this every time you want to add something new to the resource folder. So I began looking into a way to copy over the entire resource folder in one go, and I got about halfway there. I managed to find a way to copy an entire directory with everything inside of it and paste it wherever I wanted, except for the local install folder. Since the install folder is created when the application runs, not when it is built, CMake doesn't have direct access to the install folder. That's why we had to use the "set_property" function above. But I couldn't find a way to use that function along with the "add_custom_target" function that I'm using to copy the whole directory. So, for now, I will just be leaving it in the CMake file and let someone who knows more about CMake than me come along and finish what I started.
After this all got sorted out, the UWP implementation was finally passing all of the unit tests. Well, except for GWindow. So we'll go and tackle that real quick. While it took a bit to figure out exactly what the problem with the GWindow unit tests was, we did eventually find it. The problem is that since the functionality of GWindow is heavily limited to mobile applications (I know, big shocker), it isn't actually able to pass the vast majority of the unit tests made for GWindow. So someone in the past had created a separate group of GWindow unit tests that only get ran Gateware is being run in an application environment. While these tests only got compiled and ran on UWP, the standard unit tests were still getting compiled. So I was just able to separate the desktop unit test and the application unit tests so that they're only ran on the associated environment. Now, the UWP libraries are completed, and it's passing all of the Unit Tests! Now we need to go back and fix what is wrong with the other platforms.
Since this week's post is already so long and these last problems aren't really that major, I'm going to try and run through these fairly quickly. GAudio unit tests were failing on Linux because it is, for some reason, considered part of the APP Windows API Family and was running some code that is meant only for UWP, so I was just able to specify that the platform also needed to be a Windows platform and that fixed that problem. The MacOS CMake had some code that was specific to iOS, but since the iOS implementation is incomplete, it was causing some errors, so I commented it out (that way, when someone revisits iOS in the future, that code will still be there for them) and now MacOS was getting to the end of the build process. The final problem was the .yml file that tells the runners how to build and run the unit tests. On the UWP branch, a certain folder inside of all the platforms' build folders had its name changed, and we just needed to update the .yml file to look for the new file name.
And now, probably for the first time in about three years since its development began, the UWP branch finally has green check marks all across the board!
But the work is not over yet. I now need to begin working on a demo application that uses Gateware so that we can get it running on an Xbox console as a proof of concept for future capstone students that want to create a game for consoles. And then, after that, it will be working on the UWP build process so that it can finally be merged into the main branch after being on its own for about three years.
