I've started working on updating the setup process for Windows users developing on Gateware. Due to recent UWP issues that we were experiencing the previous week, we found that NuGet was required for the project and wasn't being handled appropriately when it wasn't found. I was assigned to start working on updating the script used to set the project up for use. The previous version of the script was a single bat file that would create needed directories and then call CMake to generate the projects.
The code for it was simple, but what was needed for the change was to convert this bat file into a PowerShell script. Specifically, the new process needed to get Chocolatey, install NuGet with it, and then perform the same operations as the bat file.
There were a couple issues with this, however. The first was the execution of the script. The script is stored in a ps1 file, this file is the default for PowerShell scripts, and to run this script can be tricky. Traditionally, PowerShell wants the script to be signed to run without further scripting, however, the signing process is confusing and a little strenuous to my knowledge, so I looked at the other route. This other route is setting the execution policy of the PowerShell instance to bypass. Doing this allows for the script to be run without needing the script to be signed. this was the route I ended up taking for this. The second issue that I ran into was for Chocolatey installation. Chocolatey requires that PowerShell is run as administrator to install itself correctly. This doesn't sound like an issue at first, but let's take a step back and visualize how a user would set up the project on the old and theoretical new.
If I wanted to generate the project back then, I could just start the bat file, wait for CMake to generate the projects, and then I would be ready to work. That's if I have NuGet installed and configured in the path beforehand. Overall though, NuGet configuring would only need to be done once, and then the process from there is quick for each following setup on that system.
Now on the new system, I would have to open PowerShell as administrator, and then call the command `Set-ExecutionPolicy Bypass -Scope Process -Force` before finally calling our script. This isn't just something that has to be done once either. This process would have to be done every time the user needs to set up the project. Of course, we want this done easily, so this is where I started problem-solving.
Firstly, apologies for the text being hard to read, since commands in bat can't be broken into multiple lines, it had to be written rather long.

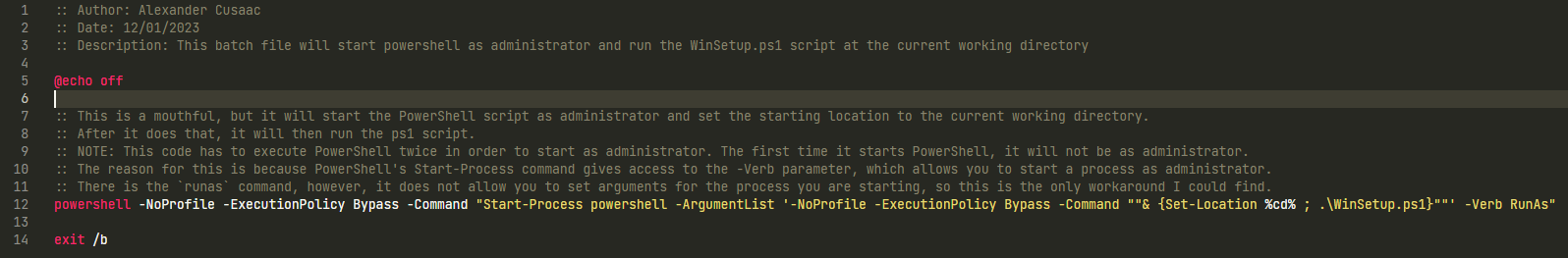

Now, this image is of the bat file replacement I wrote. What this bat file does is execute an instance of PowerShell that will execute another instance of PowerShell, except this second instance will run as administrator and be fed two commands. One command is to set the location to the active directory used by the bat file, and the second is to execute our script. Pretty straightforward, but there were problems with this.
You may have already noted that two PowerShell instances to run one as administrator has a bit of code smell, and you would be right. However, when I attempted to use the much more straightforward `runas` command that the bat script already has, it seemed to have trouble executing the PowerShell process with any arguments fed to it. This is problematic as I want the bat to handle everything for the user besides the UAC prompt to run as administrator. The only workaround I know of is this solution I made above. It's not the best by any means, but it gets the script executed.
Now, moving to the PowerShell script itself, we had to do a couple things immediately. The first is ensuring the script is being run as administrator. The code for this is a little lengthy, but surprisingly readable all things considered. After this check, we then check an absolute path to see if Chocolatey is installed. The reason I'm using an absolute path here is that Chocolatey will install here always. I don't think Chocolatey lets you modify where it installs, however, if it does, we can update this down the road to support other paths. For now, it's using the default location. If the directory where Chocolatey installs doesn't exist, we call on the installer and install Chocolatey for the user. After this installation, we immediately install the required package, NuGet.
From here, the rest of the code is simply a translation of the old bat script to PowerShell. A lot of the code stayed the same, except for the use of `errorlevel` which was switched out with `$LASTEXITCODE` since the previous was specific to bat scripting and doesn't exist in PowerShell.
Overall, the process of implementing this new system took around 2-3 hours and was relatively error-free besides the issues I mentioned. I had to take a little bit of time to design and ensure the developer running the bat file would have to interact as little as possible so that the process could be mostly automatic. I feel that the result is good and works well, but there is still the code review that will be needed for this to pass, as well as testing on another system to see if it works on other systems that are not my own. Once these pass through, the new Windows setup script should be merged and a part of the project.
